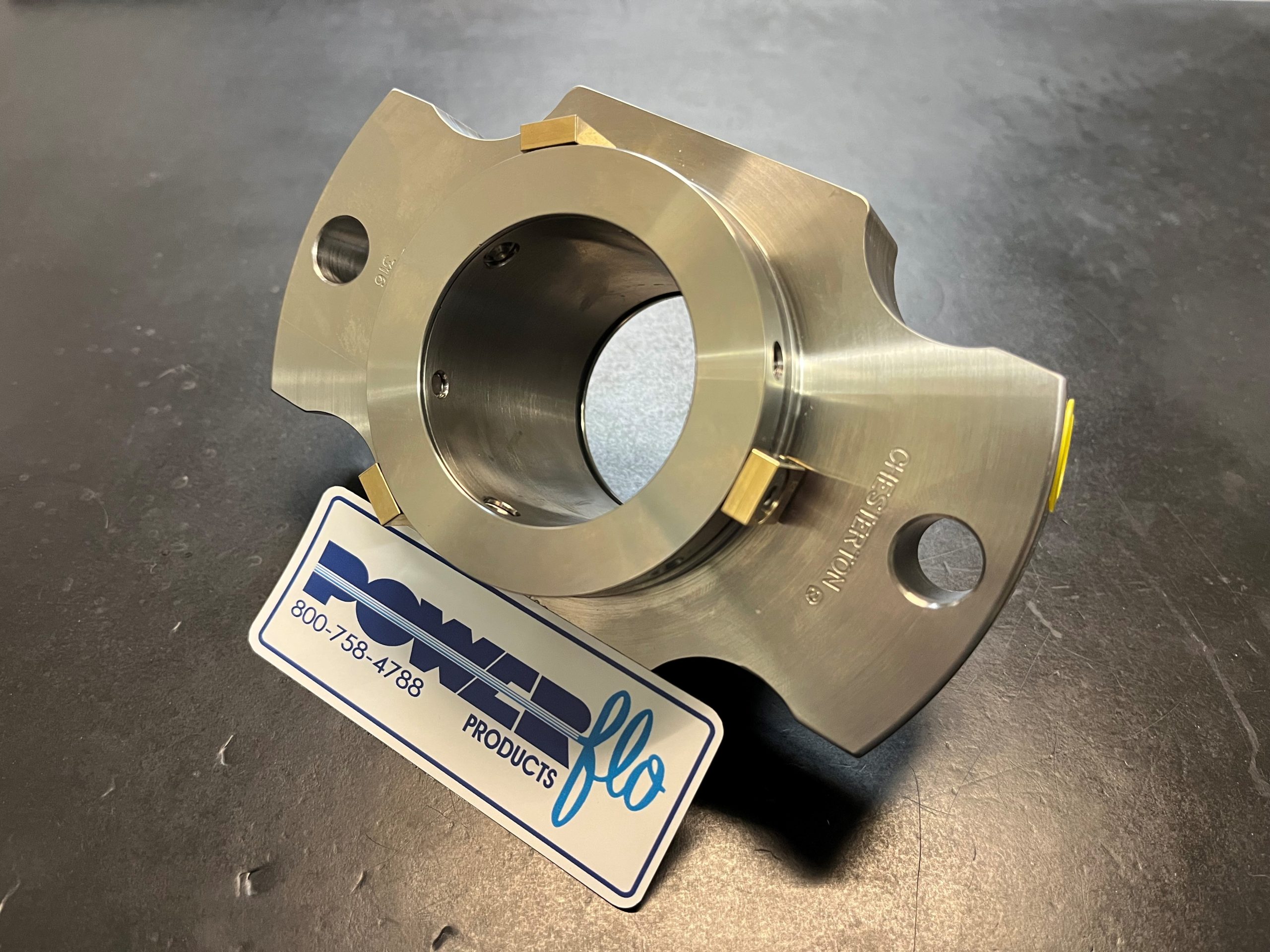

Chesterton 1810 Cartridge Mechanical Seal for Moyno L8 and Similar Pumps

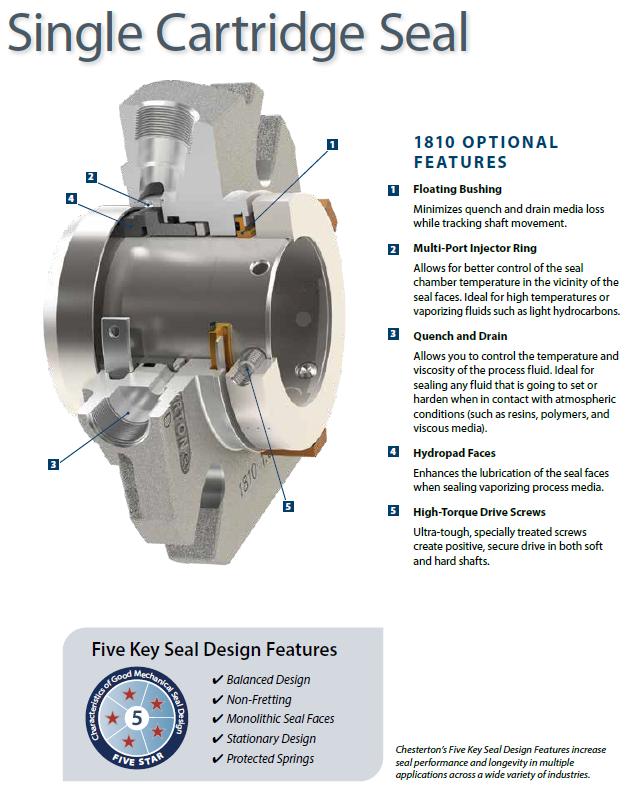

Chesterton 1810 2.125″ Heavy Duty Cartridge Seal designed with key features of reliable minded mechanical seal design. 316SS gland fitted with Tungsten Carbide vs Silicon Carbide Faces, FKM O-Rings to suit clean to dirty fluids. Gland is prepared with flush and quench/drain ports that may utilized or plugged.

• Maintains reliability through-out temperature cycling and stop/start processes with monolithic seal faces.
• Increases face life and reduces contact stress with cushioned drive pins
• Balanced seal faces for cooler running.
• Stationary located springs for true self-alignment of seal faces.
• Protected springs.
• Non-fretting o-ring design – no worn surfaces and leak paths from dynamic o-rings.
• CHESTERTON 1810 BROCHURE

Fits the following pumps and models: Moyno 1L8, 2L8, 3L8 | Roper 71212, 72212, 73212 | Continental 1CL8, 2CL8, 3CL8 | Liberty 1LL8, 2LL8, 3LL8 | Summit 1SPL8, 2SPL8, 3SPL8 | Tarby 1TL8, 2TL8, 3TL8

IN STOCK READY TO SHIP
